Have you ever wondered what happens when your only AI assistant in the business hits its limit? Maybe your chatbot can respond to routine questions. But hand it a spreadsheet and it stalls.
Your analytics agent might generate clean reports. But ask it to draft the follow-up emails, and it stops short. Your task automation bot can update tools and sync data. But it can’t decide when the workflow should run or why an action matters.
And you know what’s the worst part? Many SMBs hit this point quickly. One AI agent can’t do everything, and forcing it to do so makes it slow, unreliable, and expensive.
It’s no surprise that 57% of organizations adopted AI agents in the last two years, and 96% plan to expand them in the next 12 months. This is where a Multi-Agent System (MAS) starts to make sense.
In this blog post, we’ll walk you through how to build and deploy an end-to-end solution, covering setup, workflow design, security considerations, and scaling patterns.
Before we get hands-on, let’s break down the architecture that makes a modern MAS function, starting with A2A and MCP.

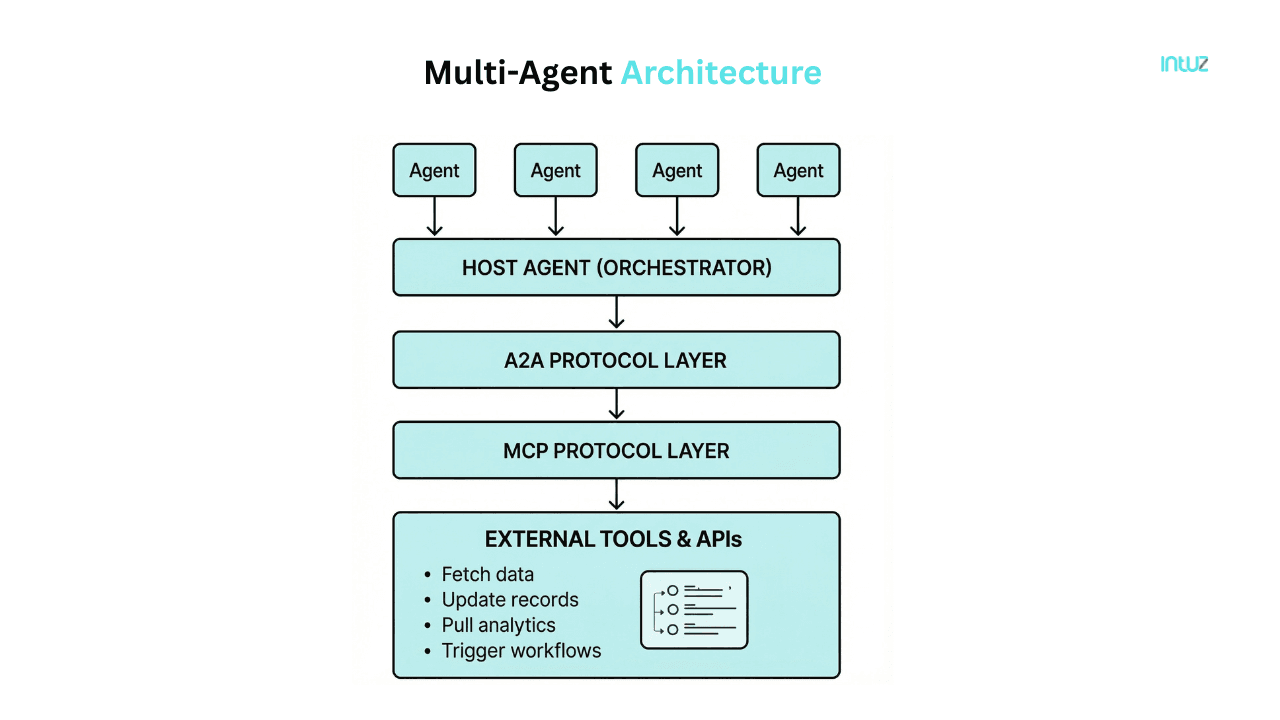

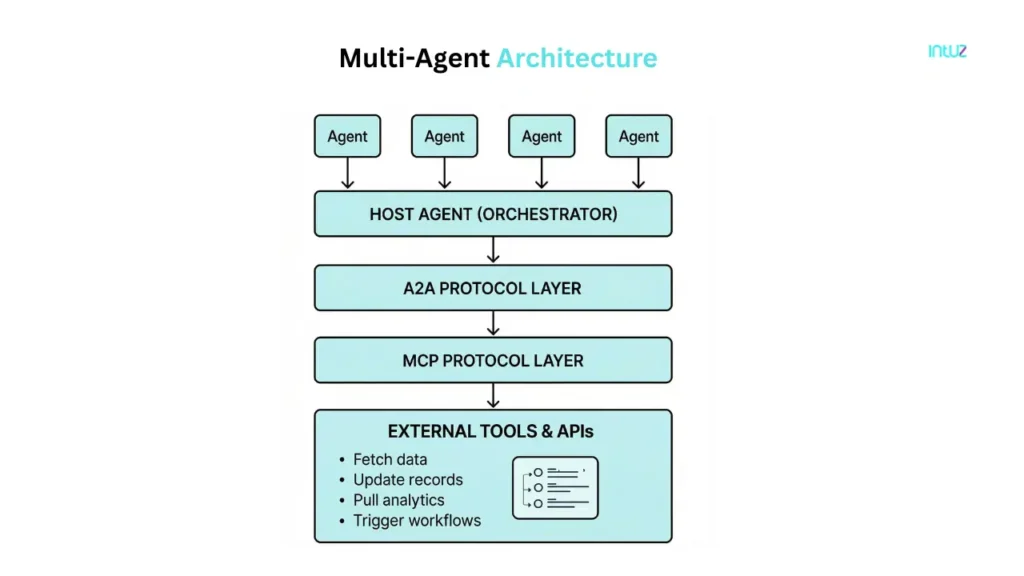

Understanding the MAS Architecture: Host Agent, A2A, and MCP

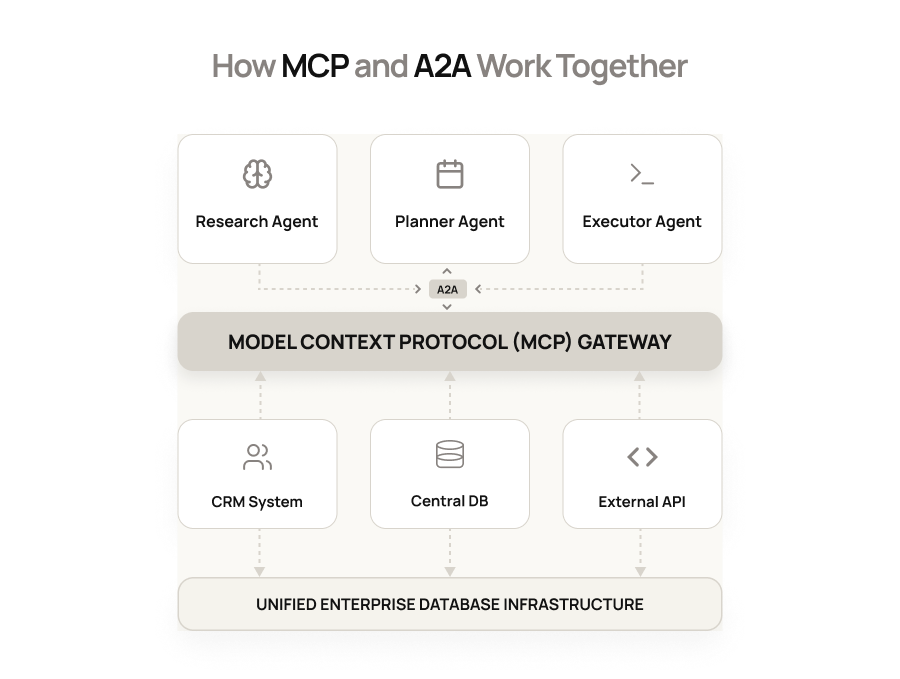

A MAS architecture comprises multiple AI agents working together to complete a shared workflow. Each agent handles a specific function, but the real power of the architecture comes from how these agents coordinate work across three layers:
1. Host agent (Orchestrator)
This is the “project manager” of your AI system. It decides which agent to activate, when to trigger a handoff, and how to keep the process on track at all times.
2. A2A communication layer
When one agent requires information or support from another, the agent-to-agent (A2A) layer handles the exchange. It’s responsible for:
- Structuring requests
- Routing them to the right agent
- Collecting the input
- Chaining follow-up steps when needed
A2A ensures agents collaborate predictably rather than operate in isolated silos.
3. MCP layer
Beneath the agent logic is the Model Context Protocol (MCP) layer, which provides agents with controlled access to real enterprise systems. Through MCP, an agent can:
- Query internal tools and data sources
- Execute predefined operations
- Interact safely using schema-validated calls
Instead of guessing or hallucinating, agents rely on MCP to make verifiable, authorized interactions with business systems.
Step-by-Step Guide: How to Build a Multi-Agent System with A2A and MCP Server
1. Stabilize your environment
A multi-agent system only behaves consistently when the underlying setup is stable. Pin your Python version to 3.10 or higher. Most agent frameworks and the MCP SDK are compatible with this version, so sticking to it prevents random breakage.
Because multiple agents often depend on slightly different Python libraries, isolate them using Docker or virtual environments. This way, you can avoid any runtime conflicts and ensure no component accidentally breaks another.

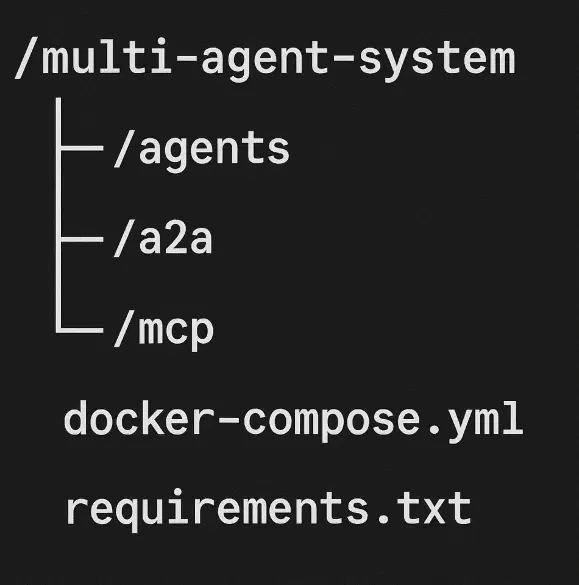

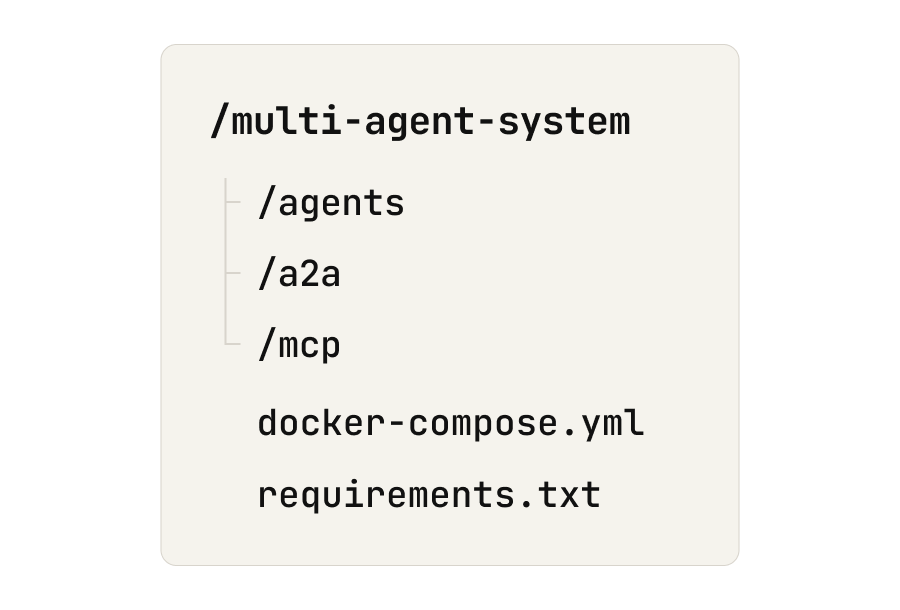

Finally, keep your practical project layout organized. Store agent logic in one folder, the MCP code in another, and the server/runtime code somewhere else. This makes the system much easier to maintain in the long run.
Intuz Recommends
Keep every agent’s thinking in its own module and feed it only the information required for the job. Don’t let agents reach out to MCP or A2A on their own. Use thin adapter layers that handle protocol communication, translate messages, and return clean data to the agent.
2. Set up the MCP server
Begin by running an MCP server instance and defining a clean context schema that represents the workflow state—for example, task queues, partial results, or lightweight agent memory. Your agents will read and update this shared context as they execute.
Expose your models and tools through MCP-compatible endpoints, complete with strict input/output schemas. Such deterministic schemas ensure predictable responses and prevent malformed agent requests. Next, keep context objects small and structured.
Massive payloads slow everything down because they need to be serialized and passed between agents repeatedly. For fast-changing values, add a caching layer, such as Redis or Memcached, so the MCP server doesn’t repeatedly recompute or refetch the same values.
Intuz Recommends
- Make MCP endpoints fully deterministic. If a request can return different data shapes, your agents will break. Therefore, validate all incoming payloads and reject anything that doesn’t match the schema.
- For instance, if an agent sends “GET /v1/context/tasks,” the MCP server must always return an array of task objects with the fields “{id, status, payload},” and if any field is missing or extra, the server should reject the request with a 400-level error.”
3. Design agent roles and behaviors
Once the MCP layer is in place, define what every agent actually does. For that, list the distinct functions in your agentic workflow and assign each one to a dedicated role—for example:
- A Research agent that gathers information
- A Planner that breaks work into steps
- An Executor that calls tools or writes updates
- A Reviewer who checks output quality
Every agent should have one responsibility and follow a clear input/output contract. In addition, spell out three things explicitly:
- What it receives: The form of the query, the shared context, and any previous result
- How it thinks: A simple pattern such as retrieve → analyze → summarize
- What it returns: A structured object like - {"status": "ok", "next_actions": [...], "result": {...}}
Keep prompts, system messages, and behavioral specs in code or config files, not scattered across the system.
When integrating Large Language Models (LLMs) (e.g., GPT-5.1, Claude, Llama 4), assign each agent a single model or model family suited to its task rather than switching models mid-flow.
Intuz Recommends
Write a short, human-readable “agent spec” for all roles, covering name, goal, input/output, permissible tools. Keep it in version control next to the code. Therefore, when behaviors drift or prompts change, you can see exactly what changed for each agent instead of debugging by trial and error.
4. Implement A2A communication
At the A2A layer, an agent exchanges structured messages, usually JSON objects that contain the intent (“task”: “summarize”), the payload (“data”: {...}), and the routing (“to”: “PlannerAgent”). This keeps interactions machine-readable, traceable, and easy to debug.
Use agent frameworks such as LangGraph, CrewAI, or AutoGen to handle message passing, turn-taking, and error handling.
There’s no need to build your own coordination engine. Keep the transport mechanism simple: HTTP endpoints, WebSockets, or a lightweight message bus like Redis Streams. When an agent sends a message, it should include four things:
- Who sent it
- Who should receive it
- What task it represents
- A payload that follows the agreed schema
The receiving agent reads only these fields, never any free-form prompt text.
A minimal exchange looks like:
- Research module sends: {“to”: “Planner,” “task:” “context_summary,” “data:” {...}}
- Planner generates a structured plan and returns it
- Executor consumes the steps and runs them through MCP-connected tools
Agents interact only through these structured objects, keeping the system modular and predictable.
Intuz Recommends
Add lightweight semantic checks to every A2A message in addition to a schema validation. Before accepting a task, an agent should verify simple, rule-based assertions like “list isn’t empty” or “status is valid”. These tiny guardrails catch logic drift and malformed outputs early

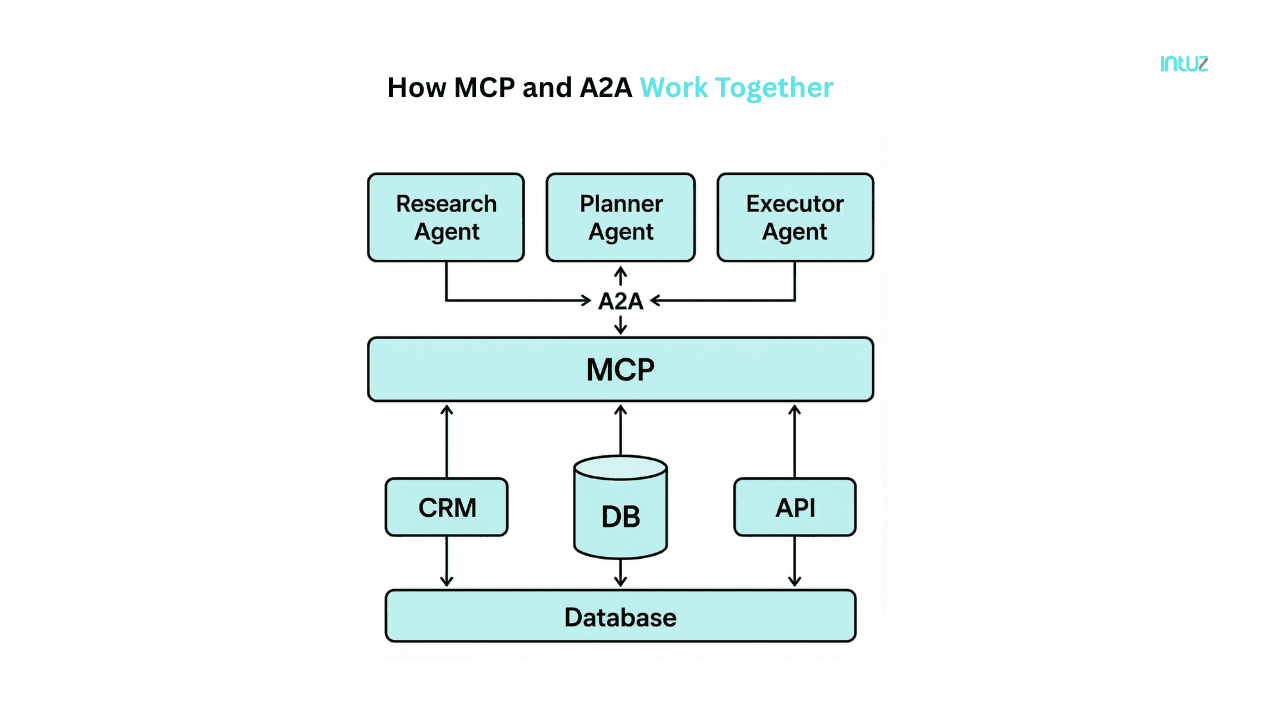

5. Integrate agents with MCP
Now you connect your agents to the MCP layer so they can work with shared context and tools consistently.
This pattern is simple: agents never call databases, CRMs, or APIs directly. Instead, they make structured requests to MCP (e.g., “get_context,” “update_context,” and “run_tool”) and receive validated data back.

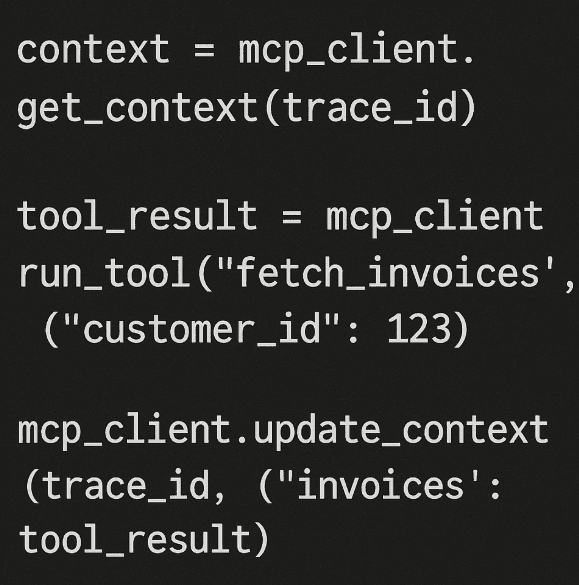

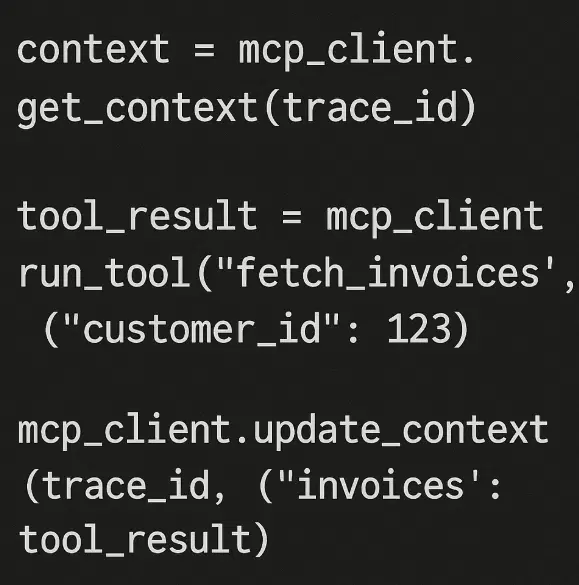

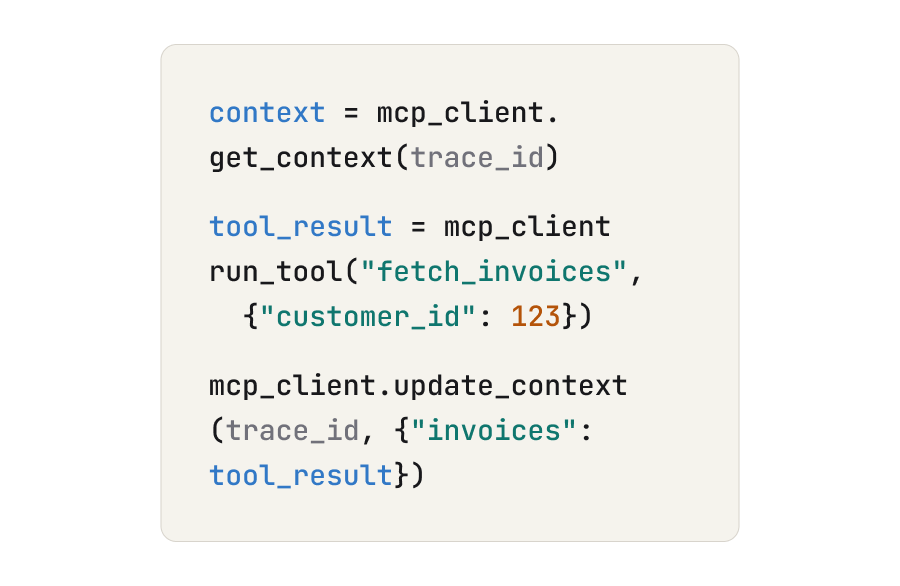

In practice, you create a small client library or helper module that agents use, something like:
Intuz Recommends
6. Run, secure, and scale your workflow
By the time you reach Step 6, your multi-agent system is ready for deployment—agents have defined roles, A2A messages are structured, and the MCP server is enforcing schemas and tool access. Your priority now is to get the entire chain running from start to finish.
Start simple. Keep your first workflow strictly linear. It could resemble something like this:
Avoid parallel steps, branching logic, and dynamic routing at this stage. They’re easy to add later, and they make debugging far more complicated early on. After your chains run reliably, add the first layer of guardrails. At minimum:
- Log every A2A message and MCP call
- Include timestamps and correlation IDs
- Enforce authentication between agents and MCP (API keys, mTLS, or signed tokens)
- Keep the MCP server in a private network segment
When the system is stable, package each agent and the MCP server as independent services—Docker is perfect for this.
Use Docker Compose or Helm during early testing, and move to Kubernetes only if you expect horizontal scaling (e.g., more ResearchAgents during heavy analysis or more ExecutorAgents during tool-heavy workflows).
Intuz Recommends
- Keep your deployment stateless so agents never rely on local data. Let MCP or a shared cache handle state instead. This keeps scaling simple and prevents context loss when replicas spin up or down.
- Pair this with readiness/liveness probes and sensible resource limits to ensure only healthy agents receive work and no single agent over consumes CPU or memory.
- And to make the whole system observable, track key metrics like step latency, error rates, and tool-call frequency, and use complete traces (via a trace_id or similar) to follow a task through the entire workflow.
